Pure quality audiophile DAC solutions for streaming audio
We have chosen to do the research and build these circuits to achieve the best possible sound experience.
Specifications:
Newly added features:
- AM (one USB input) and AE (extended inputs) versions: wired streaming from PC with USB Amanero Combo 768: up to PCM 768 kHz and DSD 512.
- AU version (one wireless input): Airplay/UPnP support for wireless streaming with integrated Moode CM4 module.
- Featuring the high-end 32-bit Rohm D/A converter BD34352 / BD34301.
- BD34352EKV: SNR: 126 dB (Typ), THD+N: -112 dB (Typ)
- BD34301EKV: SNR: 130 dB (Typ), THD+N: -115 dB (Typ)
- Wired streaming with USB Amanero Combo 768: up to PCM 768 kHz and DSD 512 (AM and AE versions.)
- Best audio grade resistors and capacitors for quality audio.
- Gold-plated RCA out connectors.
- Lowest distortion and noise OpAmps.
- IR remote control added.

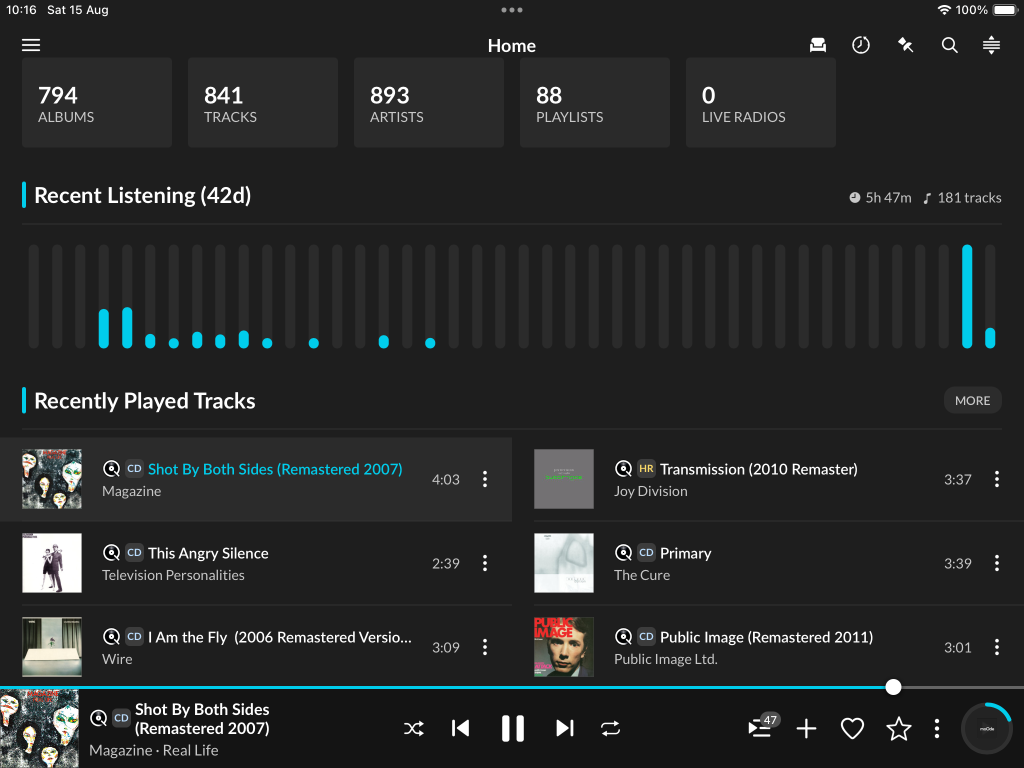

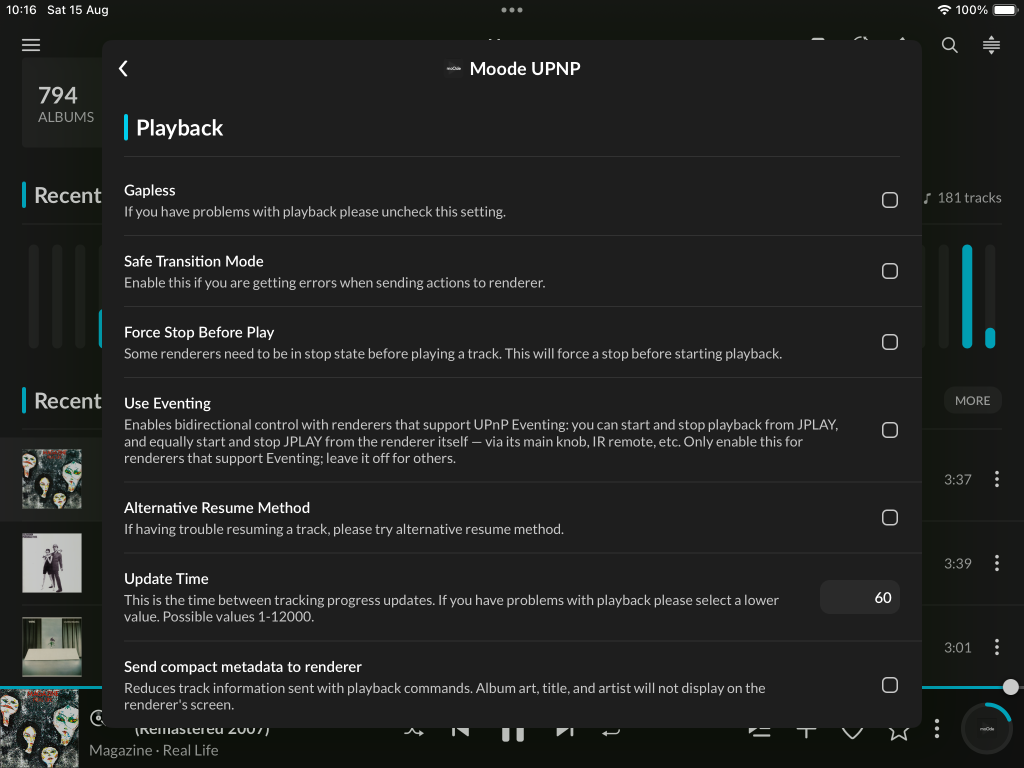

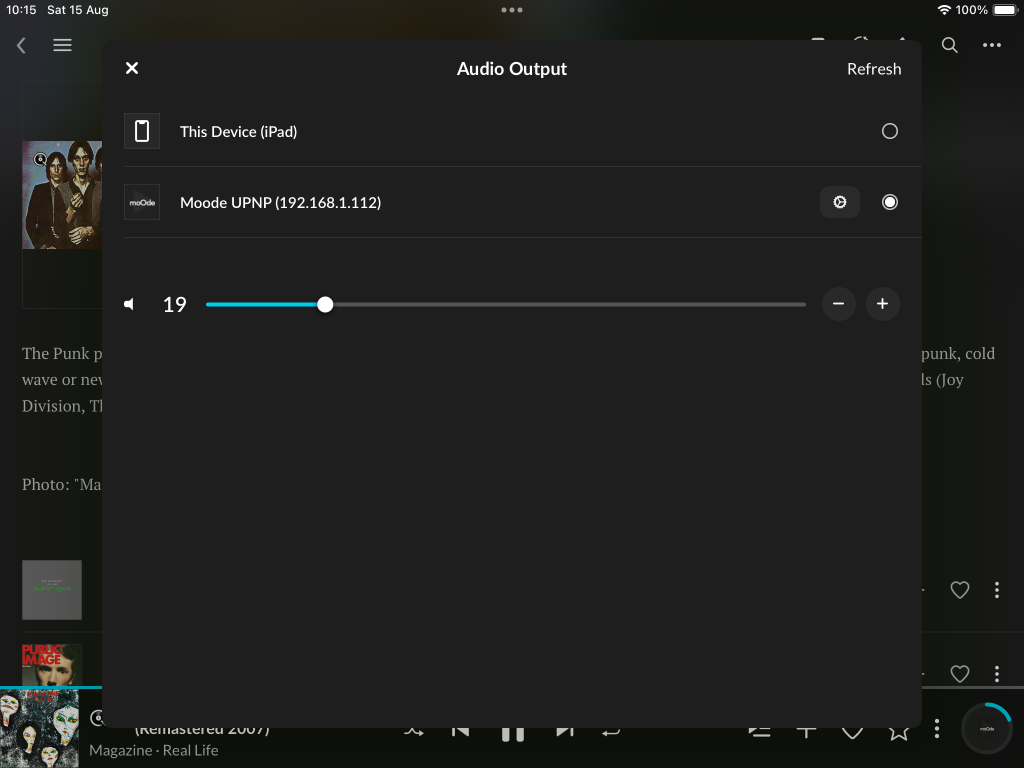

- AU version (wireless): iPad/Mac Airplay ready, limited to 44.1 kHz, 16-bits stereo. UPnP: Hi-Res Qobuz + JPlay App for iPad/Mac. Up to 192 kHz, 24 bits stereo, lossless FLAC to PCM flow.
- Spotify Connect and Roon Bridge support upon request.
- Integrated volume control (dB display) with encoder.
- Analog mute added for maximum comfort.
- Optional Class D amplifier for medium room environments.
- Live bitrate shows on OLED.
- Review of matching Speaker sets: pending.
- Production phase and product release: pending.
Contact us for more info or a quote.

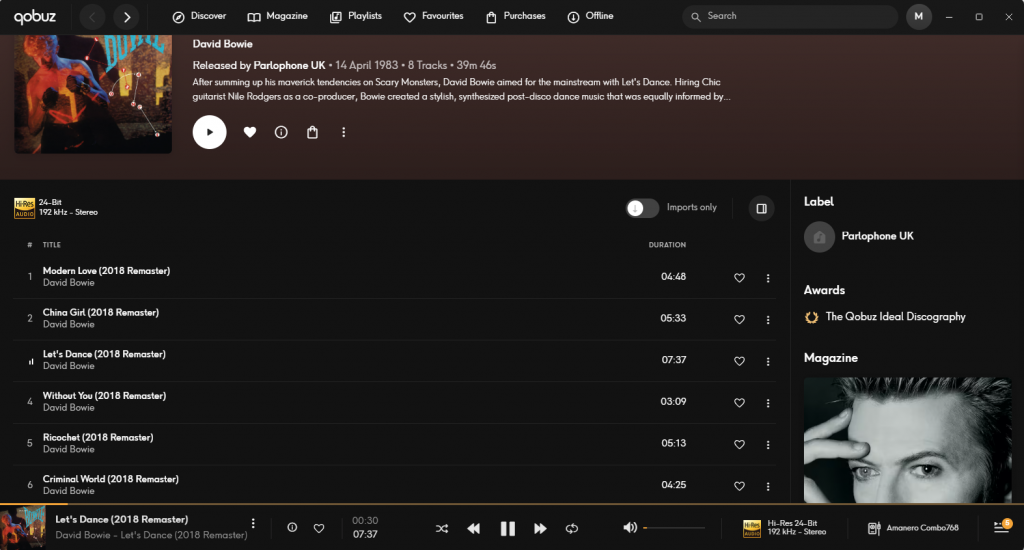

Qobuz PC App playing Hi-Res 24-Bit, 192 KHz on the USB Amanero 768 DAC input. See bottom right of this screenshot.
Click to load 3D model

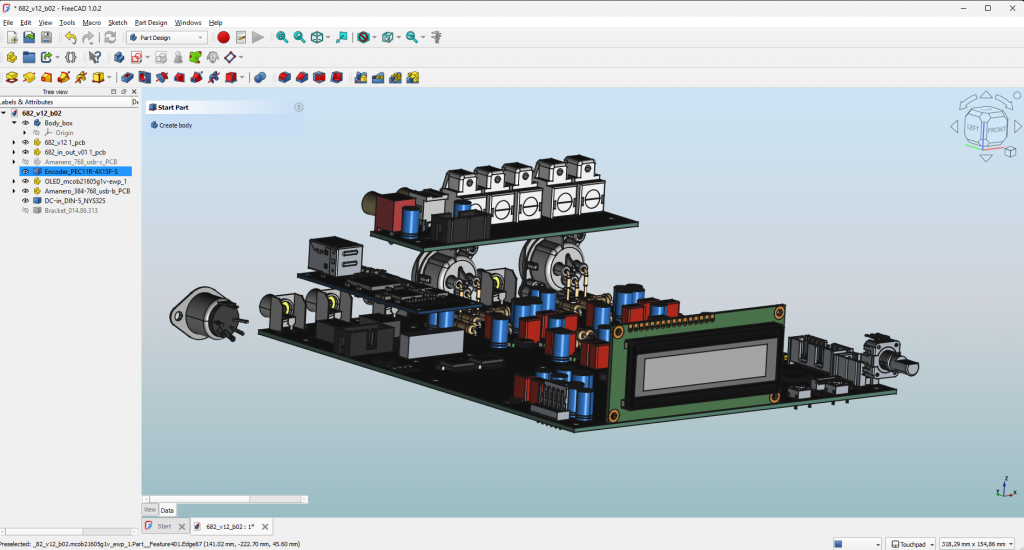

Audio DAC, Extended AE version, Rendered 3D view, tap or left/right click for controls and zoom. This needs a decent GPU to work.
