Camera Serializer

Serializer and de-serializer over Coax/FTP

CSI camera to DSI display using just a single cable connection.

Specifications:

  • Features a dual core 400MHz STM32H747 ARM microcontroller.
  • On board 256Mb SDRAM and >=256Mb QSPI operation for optimal performance.
  • Power over Coax/FTP only needs one cable (link combines image stream, data and power) to camera.

Options:

  • Full support for a range of different LCD panels with various touch controllers.
  • Low-cost or speciality camera modules support.
  • Custom UI designs available.
  • Contact us for more info or a quote.
Dual Camera Serializer Board, 3D model — click and drag to explore
Deserializer DSI view with camera and control screens

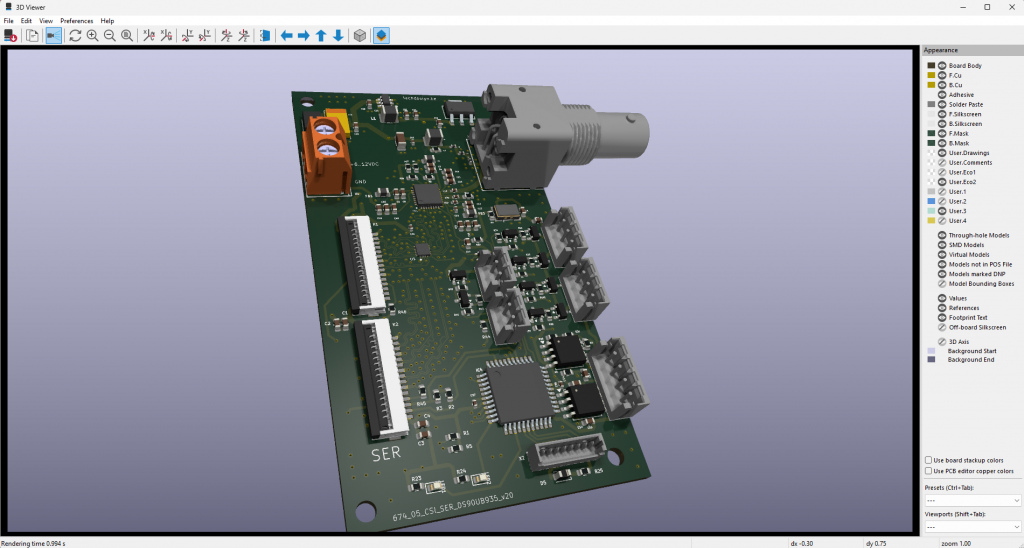

Camera serializer, 3D render view
Camera deserializer, main board 3D render view

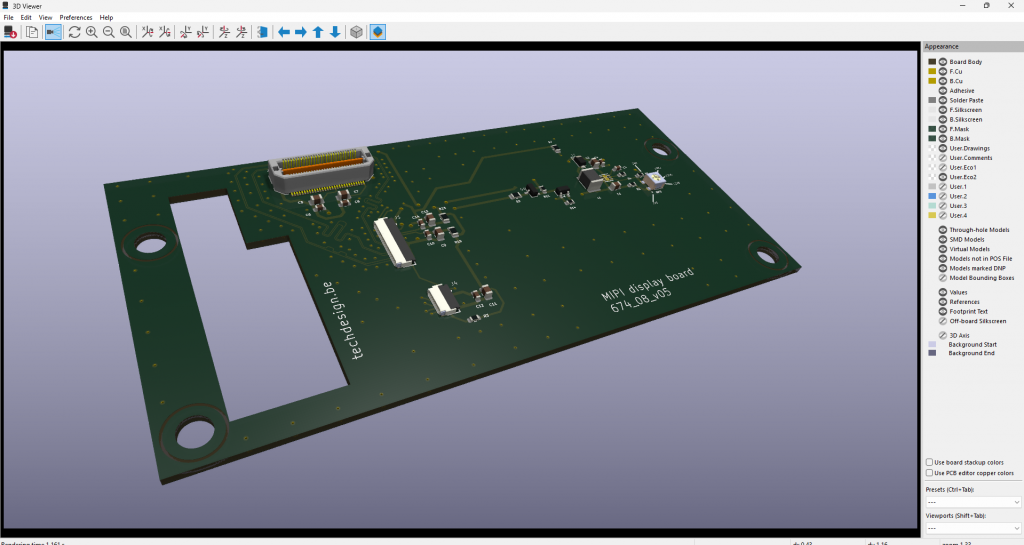

DSI display board, 3D render view
Click to load 3D model

Camera deserializer,main board, Rendered 3D view, tap or left/right click for controls and zoom. This needs a decent GPU to work.
